SKU#
QUICK-BKT
$20.89
(No reviews yet) Write a Review

In Stock

Material:
Plastic
Mounting Style:
Wall
Mounting Style:
Ceiling
Strip Type:
2" Punched Holes

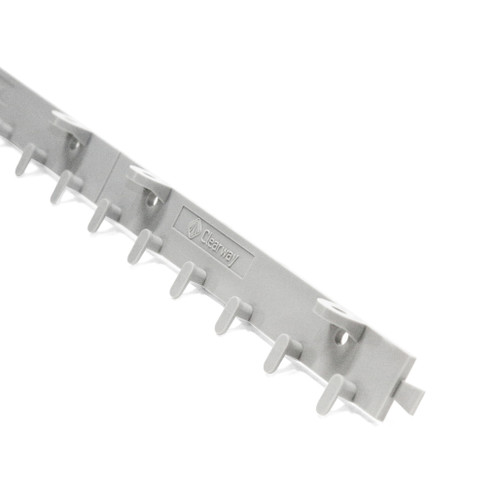

The Quick Mount bracket was specifically designed to increase installation and repair speed. It is, on average, 75% faster to install and replace strips when using this mounting style. Its innovative design allows for installation with no bolts over the strips, without compromising functionality or performance. Other than mounting it over the opening, no extra bolts or screws are needed.

  • With innovative mounting hardware systems that make installation fast, easy and convenient. Featuring heavy-duty galvanized steel, industrial strength structural aluminum, or food-safe high-tech polymers, we have the right solution for all vinyl strip applications.

Strip Types

Standard Smooth

Crystal clear transparent, flexible smooth vinyl for indoor or outdoor applications from -10° to 150°. Versatile and economical material for a wide range of applications.

PVC Strip Sizes: 4”, 6”, 8”, 12”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Low Temp Smooth

Made with the softest, most flexible, low temp formulation on the market, to prevent strips from cracking in cold temperatures. Designed for freezer applications to -40° F.

PVC Strip Sizes: 4”, 6”, 8”, 12”

Min/Max Operating Temp: -40° / 90°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: No

Standard Ribbed

Durable ribbed material reduces scratching from loads passing through the opening. Designed for heavy-duty, high-traffic applications in environment from -10° to 150°.

PVC Strip Sizes: 8”, 12”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Low Temp Ribbed

Low temp, ribbed material reduces scratching from loads passing through the opening. Made for heavy-duty, low temperature applications in environments from -40° to 90°.

PVC Strip Sizes: 8”

Min/Max Operating Temp: -40° / 90°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: No

Opaque Black

Flexible, opaque black vinyl material used to create a total sight barrier between areas. Ideal for openings in conveyor belt operations to prevent visual access behind the opening.

PVC Strip Sizes: 8”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Safety Orange

Highlights the outer edges of the opening, alerting employees and improving safety. Recommended for use as outer edge strips for strip doors with motorized traffic.

PVC Strip Sizes: 8”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Mounting Style

Generic

Generic Mount strips comes with holes punched 2" apart (Industry Standard) and need the face plates and bolts to be fixed in place properly.

Easimount

Easimount Style strips come pre cleated and have no holes. End caps need to be installed after installing strips in place to make ensure they don't slide out and curtain works properly.

Bracket Types

Wall Mount Bracket

Wall Mount Bracket was designed to be mounted on the wall above the opening. Made of heavy-duty steel. It's the most common mounting bracket across industries.

Bolts are 2 inches apart (Industry Standard)

Universal Mount Bracket

Universal Mount Bracket can be mounted on the wall or Header (door Jamb). Made of heavy-duty steel. It's perfect if you aren't sure what mounting style fits your application best.

Bolts are 2 inches apart (Industry Standard)

Metal Easimount Bracket

Metal Easimount Bracket was designed to be mounted on the wall. Strong, light weight aluminum track installs easily. Easiest mounting systems on the market feature pre-cleated, slide in strips for quick mounting and removal . When purchasing strips for this bracket make sure to specify Easimount.

Tracks accept vinyl strips in wide range of widths and materials. (For proper functionallity strips must have been cleated)

Quick Mount Bracket

Quick Mount Bracket design is fast, yet secure, way to install PVC strips. Universal mounting style can be mounted on the wall or header (Door Jamb). It's in average 75% faster to install strips and 90% faster to replace strips. It can be used for a variety of applications.

"Bolts" are 2 inches apart (Industry Standards)
