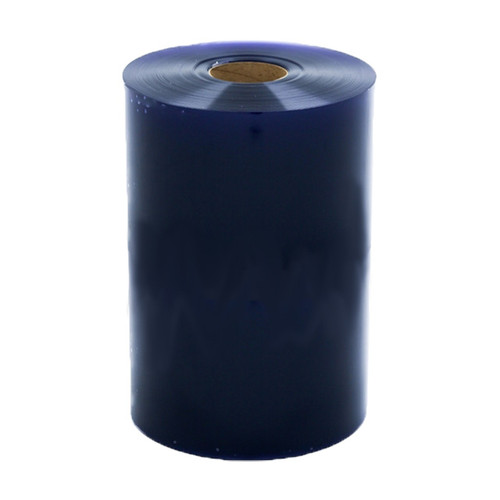

48 Inch Standard Smooth Strip Curtain Roll - 20ft

48 Inch Standard Smooth Strip Curtain Roll - 20ft
48 Inch Standard Smooth Strip Curtain Roll - 20ft
48 Inch Standard Smooth Strip Curtain Roll - 20ft
48 Inch Standard Smooth Strip Curtain Roll - 20ft
48 Inch Standard Smooth Strip Curtain Roll - 20ft
48 Inch Standard Smooth Strip Curtain Roll - 20ft
48 Inch Standard Smooth Strip Curtain Roll - 20ft
SKU#
48INSS-ROLL
$312.94
(No reviews yet) Write a Review

In Stock

Temp Rating:
Standard
Strip Type:
Smooth
Color:
Clear
Strip Width:
48 inch

Standard Smooth strips can be used for a wide range of applications. Its clear characteristics provide great visibility, which helps to prevent accidental employee injury or damage to the machinery. It helps to reduce utility costs and separate environments without restricting work area traffic flow.

  • Specifications: 48 x .12 mil x 20 ft roll - Clear Standard
  • Light-stable vinyl compound, 10 to 120°F (-12 to 49°C)
  • Applications: Indoor/Outdoor
  • Advantages: Versatile material, does not discolor in sunlight

Bulk Rolls are an economical and versatile way to get the right material for the right job. Buying the rolls, allows you to cut strips to different sizes to meet your specific needs.

Strip Types

Standard Smooth

Crystal clear transparent, flexible smooth vinyl for indoor or outdoor applications from -10° to 150°. Versatile and economical material for a wide range of applications.

PVC Strip Sizes: 4”, 6”, 8”, 12”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Low Temp Smooth

Made with the softest, most flexible, low temp formulation on the market, to prevent strips from cracking in cold temperatures. Designed for freezer applications to -40° F.

PVC Strip Sizes: 4”, 6”, 8”, 12”

Min/Max Operating Temp: -40° / 90°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: No

Standard Ribbed

Durable ribbed material reduces scratching from loads passing through the opening. Designed for heavy-duty, high-traffic applications in environment from -10° to 150°.

PVC Strip Sizes: 8”, 12”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Low Temp Ribbed

Low temp, ribbed material reduces scratching from loads passing through the opening. Made for heavy-duty, low temperature applications in environments from -40° to 90°.

PVC Strip Sizes: 8”

Min/Max Operating Temp: -40° / 90°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: No

Opaque Black

Flexible, opaque black vinyl material used to create a total sight barrier between areas. Ideal for openings in conveyor belt operations to prevent visual access behind the opening.

PVC Strip Sizes: 8”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Safety Orange

Highlights the outer edges of the opening, alerting employees and improving safety. Recommended for use as outer edge strips for strip doors with motorized traffic.

PVC Strip Sizes: 8”

Min/Max Operating Temp: -10° / 150°

Federal Food Safety Standards: Compliant

Protected for Direct Sunlight: Yes

Mounting Style

Generic

Generic Mount strips comes with holes punched 2" apart (Industry Standard) and need the face plates and bolts to be fixed in place properly.

Easimount

Easimount Style strips come pre cleated and have no holes. End caps need to be installed after installing strips in place to make ensure they don't slide out and curtain works properly.

Bracket Types

Wall Mount Bracket

Wall Mount Bracket was designed to be mounted on the wall above the opening. Made of heavy-duty steel. It's the most common mounting bracket across industries.

Bolts are 2 inches apart (Industry Standard)

Universal Mount Bracket

Universal Mount Bracket can be mounted on the wall or Header (door Jamb). Made of heavy-duty steel. It's perfect if you aren't sure what mounting style fits your application best.

Bolts are 2 inches apart (Industry Standard)

Metal Easimount Bracket

Metal Easimount Bracket was designed to be mounted on the wall. Strong, light weight aluminum track installs easily. Easiest mounting systems on the market feature pre-cleated, slide in strips for quick mounting and removal . When purchasing strips for this bracket make sure to specify Easimount.

Tracks accept vinyl strips in wide range of widths and materials. (For proper functionallity strips must have been cleated)

Quick Mount Bracket

Quick Mount Bracket design is fast, yet secure, way to install PVC strips. Universal mounting style can be mounted on the wall or header (Door Jamb). It's in average 75% faster to install strips and 90% faster to replace strips. It can be used for a variety of applications.

"Bolts" are 2 inches apart (Industry Standards)
